Hz.Mix

Hz.Mix is a utility node used to combine and modify audio signals.

Apply Gain to an input signal
Convert a mono input to stereo, applying stereo pan positioning.
Convert a stereo signal to mono, weighing channels according to pan emphasis.
Apply sidechain signal for enveloping or ring modulation.

Hz.Mix supports two input ports. The first (required) can be configured mono or stereo and the second (optional) port is currently assumed mono.

Any number of input signals can be connected to each port. With no connections to port1, we apply the mix op to Σ(input0) otherwise the mix op is applied to the product of their sums: Σ(input0) * Σ(input1). This optional sidechain input allows you to achieve effects like Amplitude Modulation (enveloping) and Ring Modulation.

Webview GUI

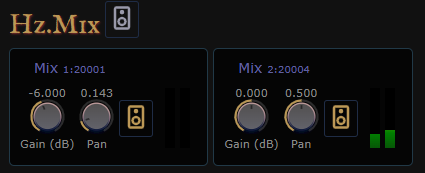

Hz.Mix's webview GUI panel groups all Hz.Mix instances into a single group and offers group-wide control over them: Mute All, Unmute All, Toggle All.

Each invidividual subpanel supports these widgets / displays:

Gain knob
Pan knob, present when relevant ("1to2" and "2to1").
Mute checkbox
Levels display (in green)

Parameters

It only takes a few parameters to control Hz.Mix:

Name	Description	Range
Gain	Signal Gain (in dB)	-20-20 (0)
Pan	Stereo Position	0-1 (.5: center)
Mode	Op Mode	0:Mute, 1:Normal, 2:Bypass
UpdateGUI	Periodically sent signal levels to GUI	true

Config and Pan

The effects of the Pan parameter depends on your network configuration.

MixMode	Description	Config
1 to 1	Monophonic Gain, Pan Ignored	`{cfg: "1to1"\|\|"mono"}`
2 to 1	Mixdown Gain, Pan used to weigh inputs	`{cfg: "2to1"}`
1 to 2	Stereo Gain, Pan used to position input	`{cfg: "1to2"}`
2 to 2	Stereo Gain, Pan Ignored `*`	`{cfg: "2to2"\|\|"stereo"}`

* It should also be noted that Pan is a standard Note Expression and may be implemented by polyphonic instruments to position individual notes within the stereo field. This is why MixMode 2 to 2 currently ignores Pan.

Here's an example stereo setup:

let mix = scene.NewAnode("Hz.Mix", {cfg: "stereo"});
let osc = scene.NewAnode("Hz.Osc", {cfg: "stereo"});
         // Hz.Osc:UnisonSpread requires stereo
scene.Chain(osc, mix, scene.GetDAC());

Dual Port Usage (Sidechain)

To configure Hz.Mix for side-chaining:

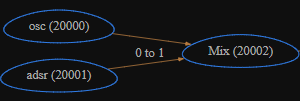

scene.Chain(osc, mix); // osc -> mix's default input
scene.Chain([adsr,0,1], mix); // adsr out:0 -> mix's "sidechain" (input:1)
