Hz.Filt

Hz.Filt implements a number of standard digital audio filters.

Hz.Filt supports two input ports. The first (required) port can be configured mono or stereo and the second (optional) port must be mono and enables audio-rate modulation of the Detune parameter.

Key Tracking

When enabled, Keytrack changes the resonant frequency according to the active note and combined with the Detune parameter.

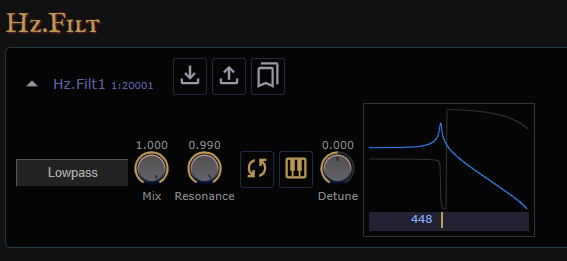

Webview GUI

Parameters from left to right: Mode, Mix, Resonance, UpdateGui, Keytrack, Detune (when Keytrack enabled), Frequency (Slider). Plot is amplitude and phase response of current Filter across a range of frequencies.

Parameters

Name Id Description Range
Mode 100 Filter Style 0:Lowpass, 1:Bandpass, 2:Highpass, 2:Notch, 3:Peaking, 4:Allphase, 5-8:reserved, 9:BqLP, 10:BqBp, 11:BqHP, 12:BqNotch, 13:BqAP, 14:BqPeaking, 15:BqLowShelf, 16:BqHighShelf, 17:BqCustom
Frequency 101 Resonant Frequency 20 - 20000, (440)
Resonance 102 0-1 (.5)
Keytrack 103 Enable Key Tracking 0 or 1 (0)
Detune 104 semitones -120 - 120 (0)
Gain 105 Gain (dB) -60 - 24 (1)
Mix 106 0 - 1 (1)
UpdateGui 107 0 or 1 (1)

See Also

Hz.Filt Examples . Smith: Introduction to Digital Filters (technical)
