Ref / Hz.Plugins / Hz.ADSR

Wherein we expose the operation and control of the ubiquitous ADSR envelope generator.

Intro

Hz.ADSR is a standalone CLAP plugin that is also a component of other Hz plugins like Hz.Osc and Hz.Samplo. Its job is to emit a shaping envelope when triggered by a NoteOn message.

When used in the standalone configuration it is usually wired into the audio graph as a side-chain connection to Hz.Mix where it is multiplied by the carrier signal. Hz.ADSR only produces non-zero values after it receives NoteOn events. Moreover, it is fundamentally, monophonic, producing a single value at any moment. You can explicitly duplicate and distribute performance events to cooperating nodes or you can employ Voices API to do this for you.

Here's a snippet from the Mix.ADSR example.

// Oscillator with built-in ADSR inactive to show side-chaining.
let id = `t${this.GetId()}`;
let scene = await Ascene.BeginFiber(this);
let osc = scene.NewAnode("Hz.Osc", {name:"osc", cfg: "mono"});
let adsr = scene.NewAnode("Hz.ADSR", {name:"adsr"});
let mix = scene.NewAnode("Hz.Mix", {name:"Mix", cfg: "1to2"});
scene.Chain(osc, mix, scene.GetDAC()); // clean
scene.Chain([adsr,0,1], mix); // connect adsr to mix's "sidechain"
await scene.Sync();
scene.VisualizeGraph();
osc.SetParam("/adsr/Active", 0); // deactivate built-in ADSR

This code produces this audio graph:

Webview GUI

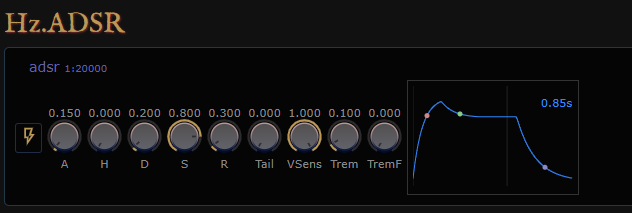

Here's the GUI for Hz.ADSR

As you'd imagine, tweaking the knobs above the ADSR parameters triggers an update to the envelope shape at the right. In addition, directly moving the colored dots update the plot and its curvature-controlling values: Apow, Dpow and Rpow.

Parameters

See Also

Mix.ADSR example
